Install both tail lights on the side panel

Install the tail light on the side panel on the left

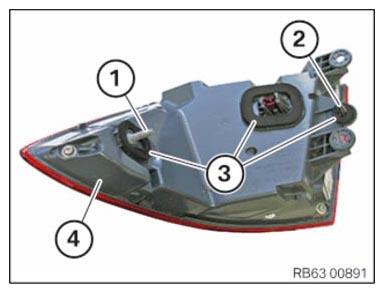

• Check the threaded bolt (1) and the guide (2) on the tail light (4) for damage.
• Replace the seal (3).

  Parts:  Gasket

  Courtesy of BMW OF NORTH AMERICA, INC.

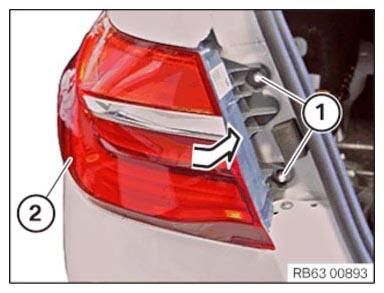

• Position the tail light (2) in the arrow direction.
• Replace nuts (1).

  Parts:  Nuts

• Tighten the nuts (1) on the tail light (2).
  TIGHTENING TORQUES SPECIFICATION



  Tail light to side panel
  Nut M6 Replace nuts.	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

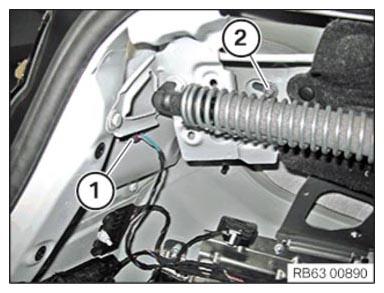

• Connect connector (1).
• Replace nut (2).

  Parts:  Nut

• Tighten nut (2).
  TIGHTENING TORQUES SPECIFICATION



  Tail light to side panel
  Nut M6 Replace nuts.	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

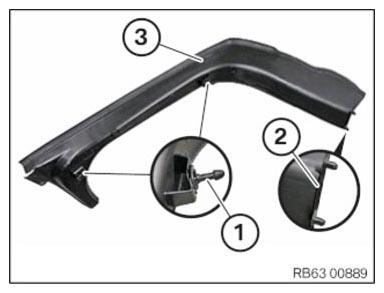

• Check the clips (1) and the guides (2) on the water drain (3) for damage, replacing if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

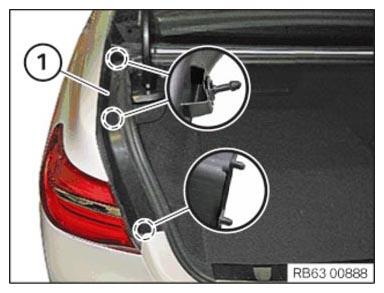

• Clip in the water drain (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

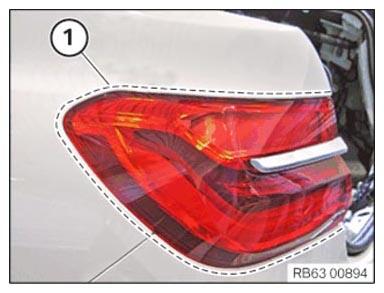

• Remove the yellow plastic adhesive tape in this area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
