Install both sun visors and counter supports
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the sun visor and the counter support

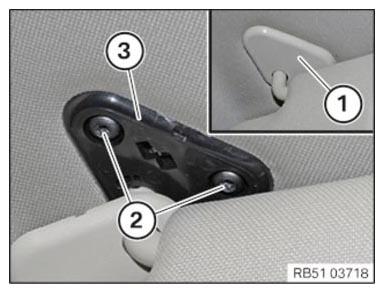

- Mount the sun visor (3), connect and lock the connector while doing so.
- Tighten down screws (2).TIGHTENING TORQUES SPECIFICATION
Sun visor to body Screw tightening torque 2.3 Nm - Engage the cover (1) towards the top.

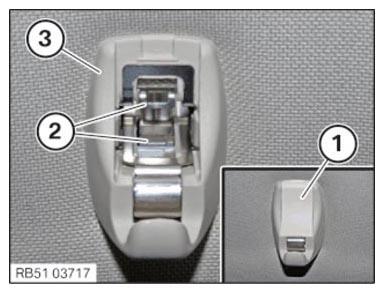

- Connect the plug connection to the counter support (3).
- Fit the counter support (3) and snap-in at the locking tabs (2).
- Install the locking wedge (1).
