Initializing the glass slide/tilt sunroof

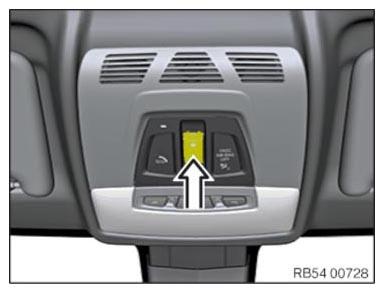

- Press and hold the switch in the "Vent Position" direction.
The glass slide/tilt sunroof shifts to vent position.
- In the event of a delayed start or sudden stop of the glass slide/tilt sunroof, continue operating the switch in the "Vent Position" direction.
- Continue to operate the switch during the entire ABL.

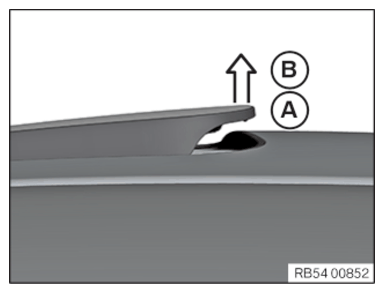

- After having reached the vent position (A) continue to operate the switch for approximately 30 s (initialization starts).
- The glass slide/tilt sunroof shifts from vent position (A) toward position (B).
- Screen (sliding headliner) - fully closes.
- Screen (sliding headliner) fully opens.
- Glass slide/tilt sunroof shifts to "closed" position.
- The glass slide/tilt sunroof shifts to the "Open" position and immediately returns to the "Closed" position.
- After a brief pause, the screen fully closes.
The initialization is completed once the glass slide/tilt sunroof and the screen have completely closed.
- Release the switch.NOTE: TECHNICAL INFORMATION
If the switch is released in the meantime, repeat the initialization. Following successful initialization, the corresponding messages in the Check Control and the control display extinguish. - Carry out functional check (one-touch mode, anti-trapping protection and, if necessary, comfort function).
