Partially disengage the fuel supply line

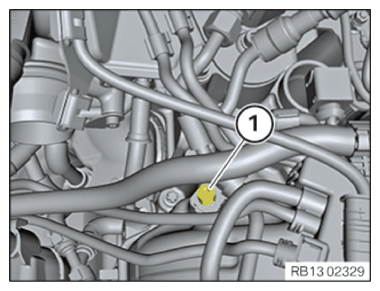

Loosen screws (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION:
On releasing high pressure line, fuel may emerge at high speed.
Injury hazard!
- Wear suitable personal protective equipment.
- Before performing any installation work, allow cooling system to cool down to less than 40°C.
- Note warnings on cylinder head cover.
Courtesy of BMW OF NORTH AMERICA, INC.

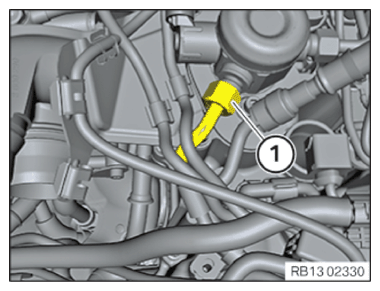

Release the fuel supply line (1) .
Place the fuel supply line to one side.

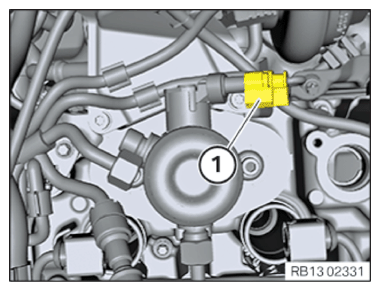

Unlock and disconnect the plug connection of the high pressure pump (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
