Engine - Variable Camshaft Timing Control System, Variable Valve Lift Control System - Repair (G12)
>>
11 36 Variable Camshaft Timing Control System (VANOS)
>>
11 36 048 Removing and installing/replacing both adjusters, right (M760i xDrive 2017-2022)
>>
Removing intake adjuster at cylinder 1 to 6
Removing intake adjuster at cylinder 1 to 6

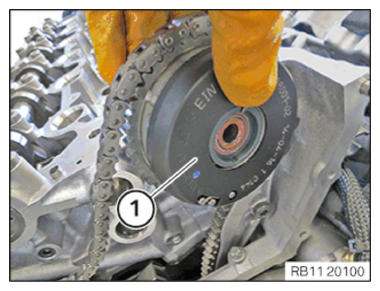

Remove the intake adjuster
(1)
from the camshaft.
(1)
Remove the timing chain from the intake adjuster.
Place intake adjuster (1) neatly in special tool
0 495 105 (11 4 480)
.
Courtesy of BMW OF NORTH AMERICA, INC.
