Replacing the cylinder head gasket

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.

Do not use any metal-cutting tools.

NOTE: Description is for left component only. Procedure on the right side is identical.

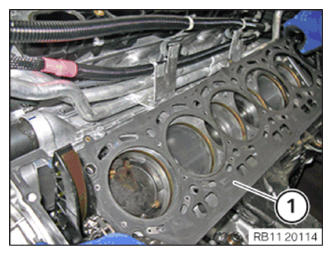

Remove the cylinder head gasket (1).

Courtesy of BMW OF NORTH AMERICA, INC.

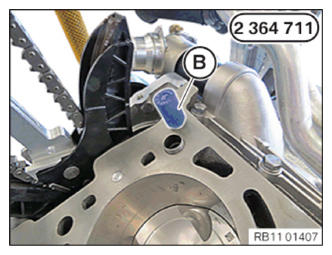

Insert the special tool 2 364 711 into the bores.

Courtesy of BMW OF NORTH AMERICA, INC.
Remove coarse residues on sealing surfaces with special tool 0 495 103 (11 4 471) from cylinder head and crankcase.

Courtesy of BMW OF NORTH AMERICA, INC.
Remove fine residues on sealing surfaces with special tool 0 495 104 (11 4 472) from cylinder head and crankcase.

Courtesy of BMW OF NORTH AMERICA, INC.
Remove special tool 2 364 711 from the bores.

Courtesy of BMW OF NORTH AMERICA, INC.

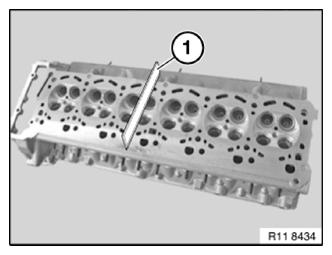

Check the flatness of the cylinder head sealing surface with a conventional straightedge (1).
Maximum deviation: 0.10 mm

Courtesy of BMW OF NORTH AMERICA, INC.
Check the flatness of the cylinder head sealing surface with a conventional straightedge (1).
Maximum deviation: 0.05 mm

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to threads.
Fluids in the threaded hole can damage the thread if screws in it are tightened.
- Dry threaded holes (e.g. using compressed air).
Clean all threaded holes (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

NOTE: TECHNICAL INFORMATION
If no work has been done on the engine block that changes the piston protrusion, use a new cylinder head gasket with the same gasket thickness.
If work has been done on the crankshaft drive or piston, the gasket thickness must be determined again.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION

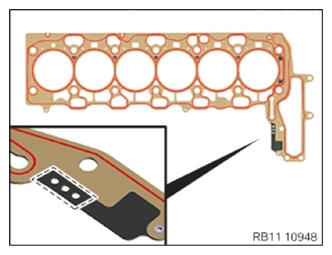

Cylinder head gasket interchange leads to engine damage. Check identification on cylinder head gasket.
Check number of holes of the old cylinder head gasket:

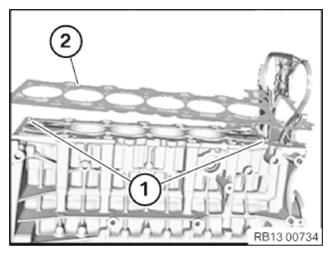

Check all fitting sleeves for tightness and for damage (1), replace if necessary.
Replace cylinder head gasket (2).
Parts: Cylinder head gasket
Place cylinder head gasket (2) on the engine block.

Courtesy of BMW OF NORTH AMERICA, INC.
