Removing the turbocharger (cylinder head removed)

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

• Remove and install heavy components with the aid of another person/other persons.

NOTE: RISK OF DAMAGE
Damage of the electric wastegate valve controller.
Excessive force when removing and installing a jammed turbocharger may damage the electric wastegate valve controller.

• Do not pull on the electrical wastegate valve controller or on the coupling rod.
• Apply force only at the turbine housing and exhaust manifold.
• Do not pull on the compressor housing.

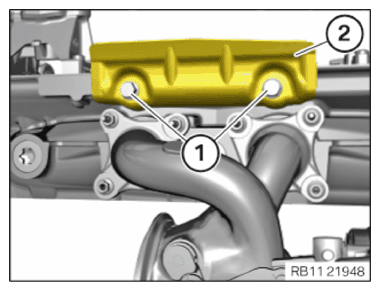

• Loosen screws (1)  .
• Feed out and remove the heat shield (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen nuts (1)  .
• Loosen screws (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Guide out and remove the turbocharger (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Guide out and remove the seals (1)  on the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.
