Installing auxiliary coolant pump for the turbocharger

WARNING: Hot fluids.
Risk of scalding!

Conduct all work in the vehicle wearing appropriate personal protective equipment only.

CAUTION: Materials harmful to health.
Contact with fluids harmful to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

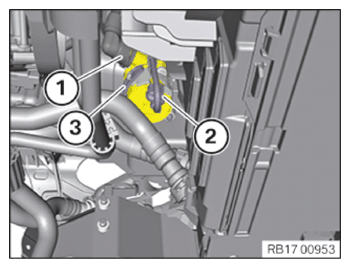

Guide the auxiliary coolant pump (1) in and connect the coolant hose (2).
Lock the coolant hose (2) audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

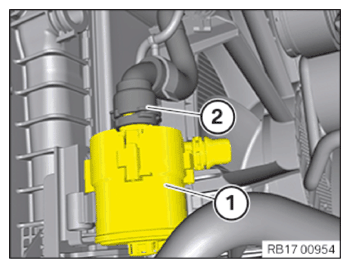

Mount the auxiliary coolant pump on the holder.
Attach the rubber band (1).
Connect and audibly lock coolant hose (1).
Connect the connector (2) and audibly lock it.

G15140692

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
