Installing C-pillar trim panel

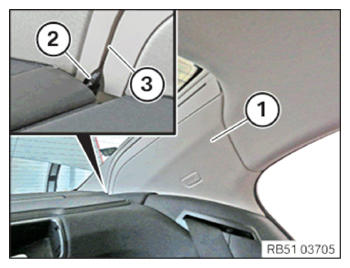

- Guide C pillar trim panel (1) with the guide rail (2) into the guide pin (3) of the roller sunblind and guide in the storage shelf.

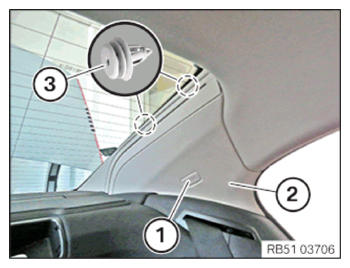

- Engage the C-pillar trim panel (2) in the clips (3).
- Tighten down screw.TIGHTENING TORQUE SPECIFICATIONS
Body pillar trim screw Tightening torque 2.5 Nm - Mount the cover (1).
