Remove rear window
NOTE:
TECHNICAL INFORMATION
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" .
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" .
NOTE:
TECHNICAL INFORMATION
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS
Preliminary work
- Refer to REMOVING BOTH C-PILLAR TRIM PANELS .
- Refer to REMOVING TRIM FOR AUXILIARY BRAKE LIGHT .
- Refer to REMOVING AUXILIARY BRAKE LIGHT .
- Unlock plug connection (1) and disconnect.
- Secure cable to rear window with adhesive tape.

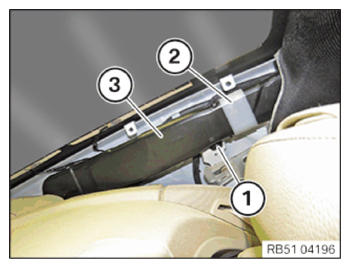

- Equipment specification with rear air conditioning:
Loosen expanding rivet (1).
Push the connection (2) upwards.
Remove the air duct (3).

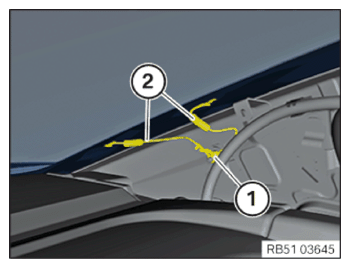

- Unfasten nut (1).
- Secure cable (2) to the rear window.

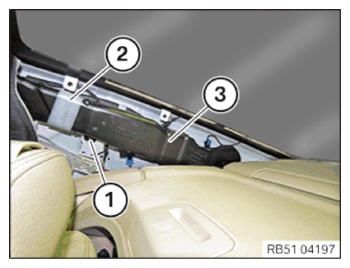

- Equipment specification with rear air conditioning:
Loosen expanding rivet (1).
Push the connection (2) upwards.
Remove the air duct (3).

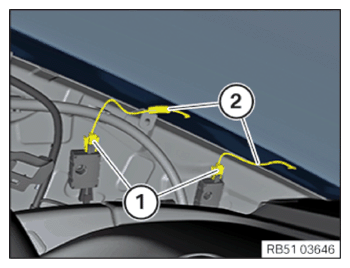

- Unlock and disconnect plug connections (1).
- Secure cable (2) to rear window with adhesive tape.NOTE: Perform the steps on the right and left side.
- Unclip the water guide (1) using the special tool 0 496 569 (00 9 325)
.
- Tape off body in area of piercing point with fabric adhesive tape.
- Push the thread (1) through the adhesive bead along the line from the inside.
- Cut out the rear window with spider.
