Body Equipment -- Repair (2 Of 3) (G12)
>>
51 31 Front And Rear Window
>>
51 31 000 Removing and installing windshield
>>
Replacing the spacer
Replacing the spacer

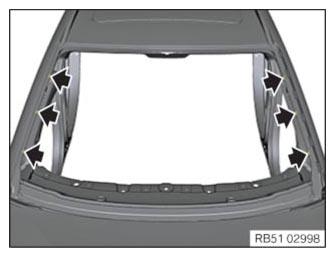

Remove the spacer (arrows) completely.
Replace the spacer 5 x 5 x 20 mm (arrows).
Parts:
Spacer 5 x 5 x 20 mm
Bond the spacer (arrow) in the center on the embossed mark.
