Checking cowl panel sound insulation

Check

Check the cowl panel sound insulation (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Sound insulation (1) for the cowl panel is damaged.

Measure

Replace cowl panel sound insulation (1) .

Parts: sound insulation

Replacing the sound insulation for windshield panel

Removing the sound insulation for the windshield panel

NOTE: TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE

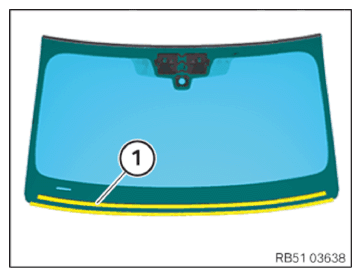

Remove the sound insulation (1) for the windshield panel from the windshield.

Courtesy of BMW OF NORTH AMERICA, INC.

Attaching the sound insulation for the windshield panel

Clean the adhesive area for the sound insulation (1) for the windshield panel.
Replace the sound insulation (1) for the windshield panel.
Parts: sound insulation

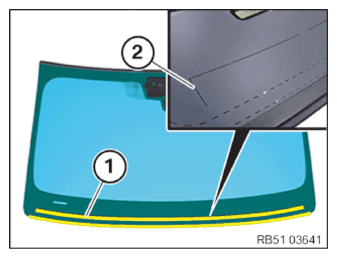

Stick the sound insulation (1) for the windshield panel along the mark (2) on the windshield.

Courtesy of BMW OF NORTH AMERICA, INC.
