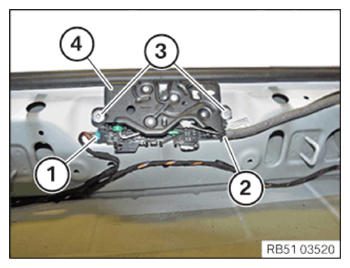

Installing the tailgate lock

• Remove the tailgate lock (4)  .
• Tighten down screws (3)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Tailgate lock to body
  M8x20 screw	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the cable (2)  .
• Connect the plug connection (1)  .

Follow-up work

• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
