Adjusting rear lid lock

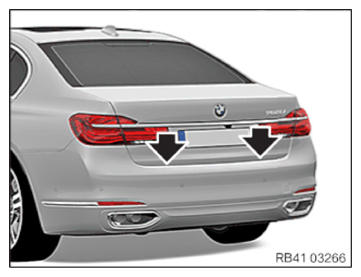

• Lever out the covers (1) on the marked recesses (arrows) with a screwdriver and remove them.
• Loosen screws (2) until the tailgate lock can be shifted.
• Adjusting tailgate lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Check

• Check the gap dimensions between the trunk lid and the bumper cover.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Gap dimensions do not correspond to the specifications.

  Measure

  • Adjust tailgate latch.
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Tailgate lock to body
  M8x20 screw	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the covers (2).
• Adjust stop pad (1).

Courtesy of BMW OF NORTH AMERICA, INC.
