Prepare New Part

NOTE: TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions

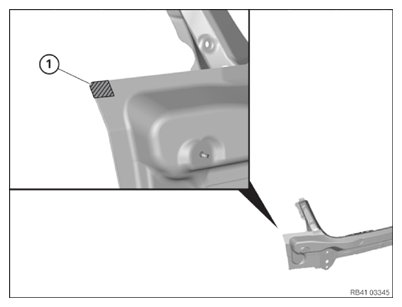

Rip and detach this area (1) measuring 15 x 20 mm.

Courtesy of BMW OF NORTH AMERICA, INC.
The bores (1) can be extended in diameter by a maximum of 10 mm.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust and secure the tail cowling (1) in combination with the trunk lid and tail lights.

Courtesy of BMW OF NORTH AMERICA, INC.

Areas (1) to (3) : Position the bores with Ø 4.2 mm for the blind rivets.

Area	Number
1	11
2	3
3	1

Courtesy of BMW OF NORTH AMERICA, INC.

Install the support (3) . Join the screw (1) .
Prepare support (3) in areas (2) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare new part and vehicle in areas (1) for joining by MAG welding.
Remove new parts and deburr bores.
