Install Tail Panel Outer Section
- Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 - Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
CONSUMABLE SPECIFICATION
Cleaning agent R1 100 ml, Bottle 83192211217 - Apply adhesive K5 to the bonding surfaces.
ADHESIVE DESCRIPTION
Body adhesive K5 50 ml 83192158654 - Install new part.NOTE: Perform the steps on the left and right side.

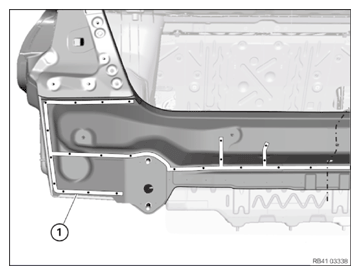

- Rivet the new part in area (1) with blind rivets N3.
CONSUMABLE SPECIFICATION
Blind rivet N3

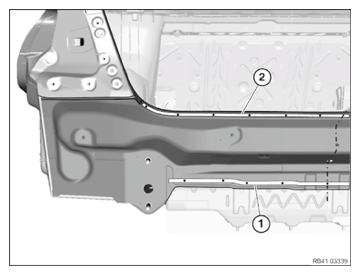

Ø 4 mm; clamping area 1-3 mm83190301421 - Rivet the tail cowling in the areas (1) and (2) with punch rivets N4.
| Area | Number |
|---|---|
| 1 | total of 9 |
| 2 | total of 12 |
CONSUMABLE SPECIFICATION
| Punch rivet N4 Ø 3 mm; 4 mm long |
83192457307 |
Installing the EMC screw
- Drill the hole with a diameter of 4.2 mm after the adhesive completely hardens.
- Screw in the EMC screw.
- Seal the EMC screw with the sealant.
CONSUMABLE SPECIFICATION
| Sealant D1 (seam sealing) | 310 ml | 83422409985 |
NOTE:
TECHNICAL INFORMATION
Avoid contact of the escaped adhesive with the support for the bumper cover. Do not use any cleaning agents containing solvents.
Avoid contact of the escaped adhesive with the support for the bumper cover. Do not use any cleaning agents containing solvents.

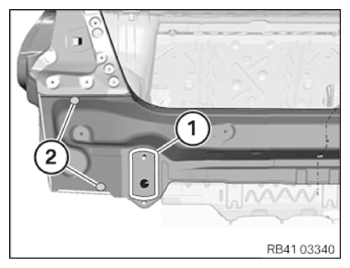

- Press in the tail cowling in area (1) and remove the emerging adhesive.
- Attach the support for bumper cover.
- After the adhesive has hardened, install 2 EMC screws in the areas (2) shown.
CONSUMABLE SPECIFICATION
| screw EMC screw, SF Plus, M5x15 |
83190301639 |
