New Parts Required
Precondition
- Vehicle is secured on the straightening bench.
WARNING:
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
61 00... Safety instructions on handling hybrid cars
- For additional information see:
61 25... Notes on repair of high-voltage battery unit
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: 41 00... Repair method for repair stage 3
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
- Refer to REMOVE FLAP IN LUGGAGE COMPARTMENT TRIM PANEL ON RIGHT .
- Refer to DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM .
- Refer to CHECK THAT NO VOLTAGE IS APPLIED .

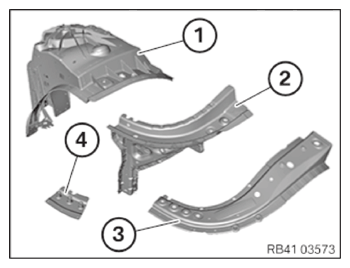

- Prepare the following new parts (see Electronic Parts Catalog [EPC]):
spring support (1)
Inner wheel arch section carrier support (2)
Carrier support, wheel arch, front (3)
screw connection of front panel (4)
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Overview of consumables in Electronic Parts Catalog - Supply the following consumables:
| Material | Quantity |
|---|---|
| Adhesive K1 | 1 |
| Blind rivet N1 | 60 |
| Blind rivet N2 | 16 |
| EMC screw | 3 |
| Cavity foam HS3 | 1 |
| Cleaning agent R1 | 1 |
| Cleaning agent R2 | 1 |
| Sealant D1 | 1 |
| Cavity sealing wax remover | 1 |
