Remove Carrier Support

Release the self-tapping screw in areas (1) .
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections
Heat and release the bonded connections in areas (1) .
Do not damage the aluminum engine mount in the process!

Courtesy of BMW OF NORTH AMERICA, INC.

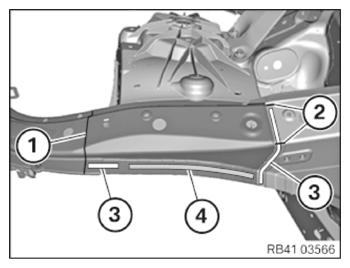

Mark and make the separating cuts (1) and (2) as shown.
Release welded connections in areas (3) .
NOTE: TECHNICAL INFORMATION
For additional information see: Open riveted joints (41 00).
Release rivet connector in area (4) . Do not damage the aluminum shock tower!

Courtesy of BMW OF NORTH AMERICA, INC.
Heat and release the bonded connection in area (3) and (4) . Do not damage the aluminum shock tower!

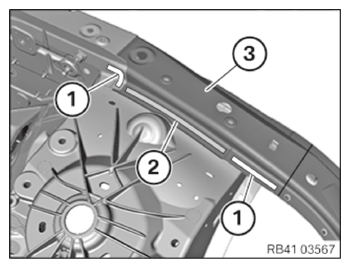

Release welded connections in areas (1) .
Release rivet connectors in area (2) . Do not damage the aluminum shock tower!
Heat and release bonded connections in areas (1) and (2) . Do not damage the aluminum shock tower!
Remove the carrier support (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

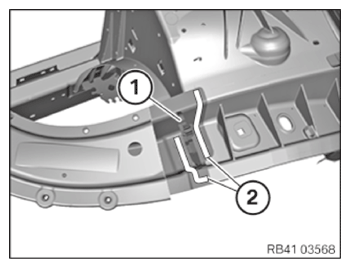

Remove cavity sealing (1) .
Release the rivet connectors in area (2) . Do not damage the aluminum shock tower!
Heat and release bonded connections in areas (2) . Do not damage the aluminum shock tower!
Remove the carrier support.

Courtesy of BMW OF NORTH AMERICA, INC.
