Install Carrier Support

Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324
Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
CONSUMABLE SPECIFICATION

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K1 to the bonding surfaces.
ADHESIVE DESCRIPTION

Body adhesive K1 195 ml 83190413015
Install the new parts with an alignment bracket or a universal mount.

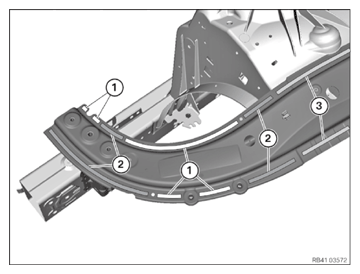

Rivet the new part in area (1) with blind rivets N1.
CONSUMABLE SPECIFICATION

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm 83190301414

Courtesy of BMW OF NORTH AMERICA, INC.

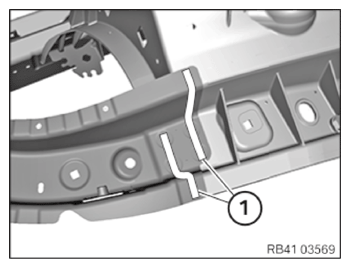

Rivet the new part in area (1) with blind rivets N1.
CONSUMABLE SPECIFICATION

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm 83190301414

Courtesy of BMW OF NORTH AMERICA, INC.

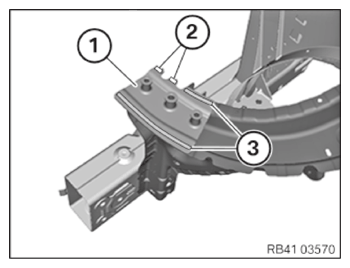

Weld the new part (1) in areas (2) and (3) according to the new part preparation process.

Courtesy of BMW OF NORTH AMERICA, INC.

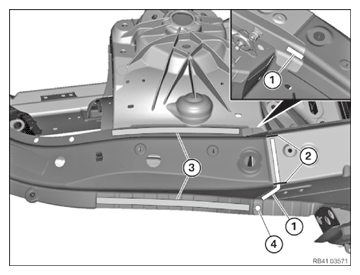

Rivet the new parts in the areas (3) and (4) with blind rivets N1.
CONSUMABLE SPECIFICATION

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm 83190301414
Weld the new part in the areas (1) and (2) according to the new part preparation process.

Courtesy of BMW OF NORTH AMERICA, INC.
Weld areas (1) and (2) according to the new part preparation process.
Avoid excessive application of heat to adhesive areas (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Installing cavity sealing using 2-K-PU cavity foam

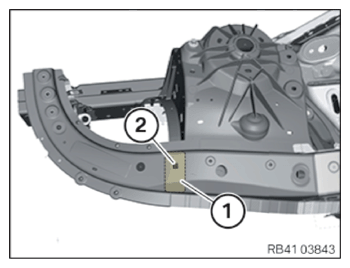

Create a cavity sealing in the area (1) with cavity foam. Introduce cavity foam HS3 through the opening (2) .
