Replacement of the windshield washer pump

Remove windshield washer pump

• Pull windshield washer pump (1)  out of washer fluid reservoir (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Pull gasket (1)  out of washer fluid reservoir (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the window washer pump.

Parts:  Windshield washer pump

Installing the window washer pump

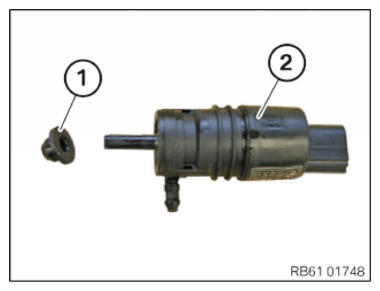

• Check the seal (1)  and washer pump (2)  for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the seal (1)  in the washer fluid reservoir (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the windshield washer pump (1)  in the washer fluid reservoir (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING WASHER FLUID RESERVOIR .
• Refer to INSTALLING THE AIR DUCT ON THE INNER SIDE PANEL .
• Refer to INSTALLING THE TRIM ON THE SIDE PANEL .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE MOUNT OF THE HOOD SEAL .
• Refer to INSTALLING THE LID FOR THE WASHER FLUID RESERVOIR .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT CENTER .
• Refer to INSTALLING THE FRONT RIGHT WHEEL .
• Refer to RESETTING THE TIRE PRESSURE MONITOR .
