Replacing the nozzle chain

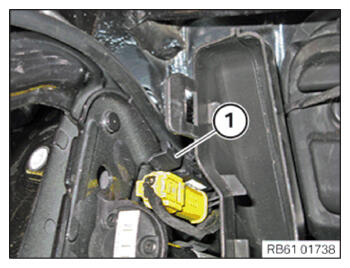

- Unclip holder (1) from engine compartment lid hinge.

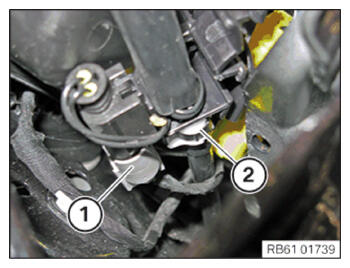

- Unlock plug connection (1) and disconnect.
- Unlock and disconnect nozzle chain (2).
- Feed out nozzle chain (2) with access line.
- Replace the jet chain.
Parts: Jet chain
- Insert the jet chain (2) with the connecting cable.
- Connect connector (1).
- Connect nozzle chain (2).
- Clip in the holder (1) in the hood hinge.
