Installing the gear selector switch cover

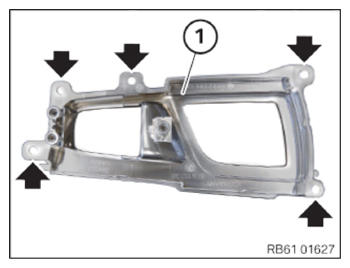

• Check the retaining tabs (arrows) on the gear selector switch cover (1) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

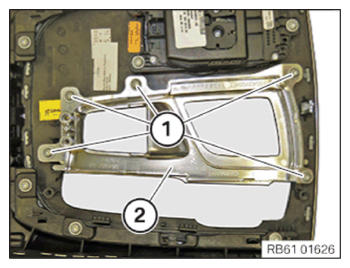

• Position the gear selector switch cover (2) on the center console trim.
• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE OPERATING FACILITY IN THE CENTER CONSOLE .
• Refer to INSTALLING THE PARKING BRAKE BUTTON .
• Refer to INSTALLING THE CENTER CONSOLE TRIM .
