Install operating unit for the seat adjustment

NOTE: Description is for left component only. Procedure on the right side is identical.

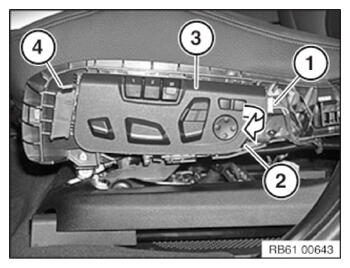

Position the switch combination (3) in the support (4).
Check the detent (2).
Connect plug (1).

G15135931

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING OUTER COVER ON FRONT SEAT .
