Removing the connecting socket of the USB audio interface in the front storage compartment
Preliminary work
- Refer to REMOVING THE FRONT STORAGE COMPARTMENT .

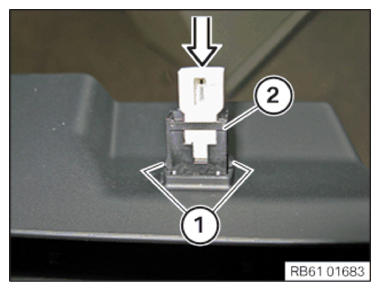

- Loosen the detents (1).
- Press out the connecting socket (2) from the storage compartment in the direction of the arrow.
