General Electrical System -- Repair (G12) (2 Of 2)
>>
61 31 Switch, Sensor
>>
61 31 117 Removing and installing/replacing power window switch on driver's side
>>
When replacing the left power window switch: remounting switch trim
When replacing the left power window switch: remounting switch trim

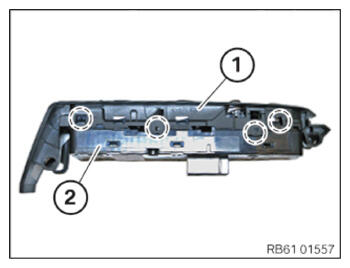

Unlock the switch trim (1) at the marked points on both sides.
Remove switch trim (1) from power window switch (2).
Replace power window switch (2).
Parts:
Power window switch
Position the power window switch (2) (1) at the switch trim and clip it in.
