General Electrical System -- Repair (G12) (2 Of 2)
>>
61 31 Switch, Sensor
>>
61 31 083 Removing and installing/replacing switch for tailgate release
>>
Remove the trunk lid lock switch
Remove the trunk lid lock switch
Preliminary work
Refer to
REMOVING FRONT DOOR TRIM PANEL
.

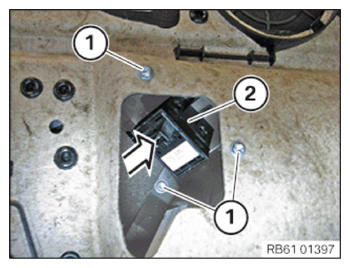

Loosen screws (1).
Press the trunk lid lock switch with the trim (2) out of the door trim panel in the direction of the arrow.
Courtesy of BMW OF NORTH AMERICA, INC.
