Replacing the LED fan

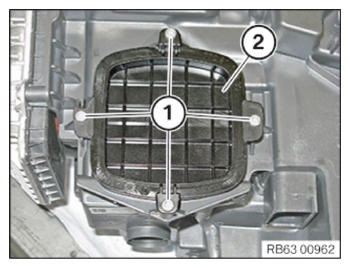

Loosen screws (1).
Pull the cover (2) out of the headlight.

Courtesy of BMW OF NORTH AMERICA, INC.

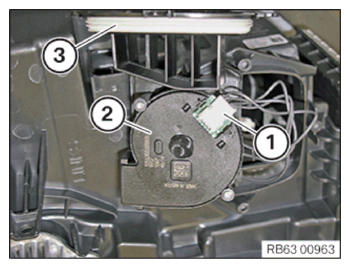

Unlock and disconnect the connector (1) from the LED fan (2).

Courtesy of BMW OF NORTH AMERICA, INC.

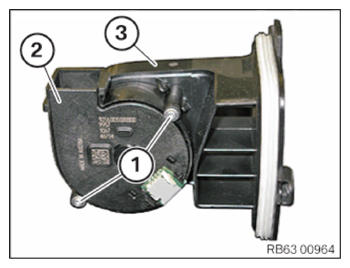

Loosen screws (1).
Remove the LED fan (2) from the cover (3).
Replace the LED fan.
Parts: LED fan
Position the fan (2) on the cover (3).

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

LED fan
PT screw 30x32	tightening torque	1.5 Nm

Connect the connector (1) to the LED fan (2).
Check the seal (3) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the cover (2) in the headlight.
Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

LED fan
PT screw 30x32	tightening torque	1.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Release the latch mechanisms (arrows).
Turn the cover cap (1) towards the left, open and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Release screw (1) the cover (2).
Feed out the cover (2) from the guides.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the plug connection (1) on the LED fan (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Turn the fan (1) towards the left, release it from the cover (2) and remove.
Replace the fan (1).
Parts: LED fan
Position the fan (1) on the cover (2), turn towards the right and engage.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the connector (1) to the LED fan (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed cover (2) into the guides.

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

LED fan
Screw 40x10	tightening torque	1.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
