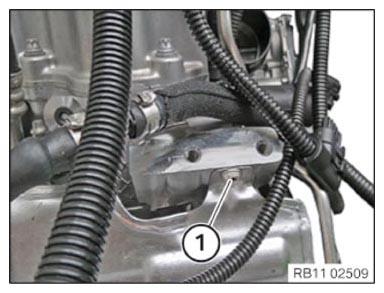

Fasten the screw to the heat shield at the front left
Fasten the screw to the heat shield at the front left
Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
Heat protection plate
M6x16
tightening torque
10 Nm
