Removing and installing/replacing rear reflector (until 05/2013) (330i xDrive Wagon, 328d xDrive Wagon)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 327
NOTE:
Work shown on the F30 by way of example, deviations in detail are possible in other models.

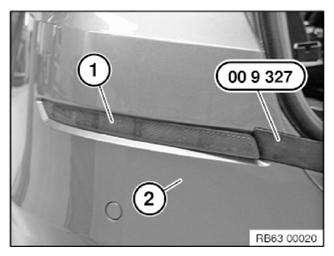

Carefully unclip rear reflector (1) on the right side using special tool 00 9 327 .
Remove rear reflector (1) toward the rear from bumper panel (2).
Installation note:

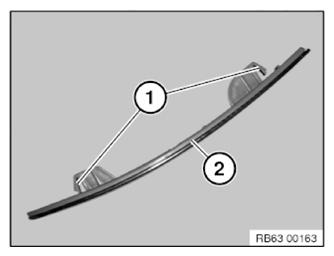

Retaining lugs (1) must not be damaged.
Make sure rear reflector (2) is correctly seated.
