Removing and installing/replacing intake silencer housing (B48) (330i xDrive Wagon, 330i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DESIGN COVER .

Removal:

G14163659

Courtesy of BMW OF NORTH AMERICA, INC.

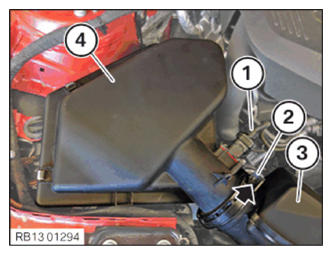

Unlock and disconnect plugs (1).

Release lock (2) in direction of arrow.

Remove the clean air pipe (3) and put to one side.

Loosen and remove the intake silencer housing (4) from the rubber mounts.

Preparation for installation:

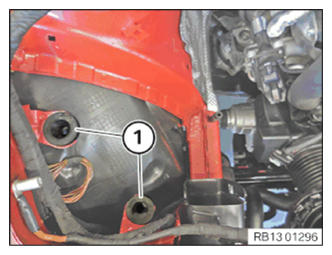

Check the rubber mounts (1) are positioned correctly.

G14163660

Courtesy of BMW OF NORTH AMERICA, INC.

G14163661

Courtesy of BMW OF NORTH AMERICA, INC.

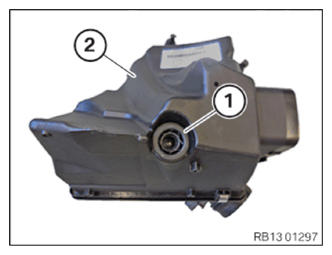

Check the rubber mounts (1) are positioned correctly on the intake silencer housing (2).

Installation:

G14163662

Courtesy of BMW OF NORTH AMERICA, INC.

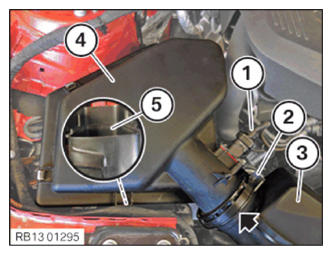

Insert and install the intake silencer housing (4) in the intake port (5).

The intake silencer housing (4) must engage audibly with the rubber mounts.

Insert and install the clean air pipe (3) in the direction of the arrow.

Lock (2) must snap audibly into place.

Attach and lock connector (1).

Connector (1) must engage audibly.

Required follow-up work:

Install the DESIGN COVER .
