Removing and installing/replacing rear spoiler (330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear lid TRIM .

Extend rear spoiler (1).

Danger of injury by trapping !

Unclip water drain channel (2).

Installation note:

Make sure drain hose and water drain channel (2) are securely positioned and leak tight.

Courtesy of BMW OF NORTH AMERICA, INC.

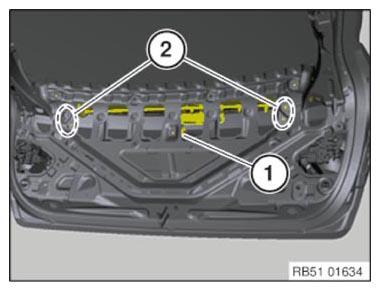

Unlock plug connections (1) and disconnect.

Unfasten screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown with rear spoiler removed for purposes of clarity.

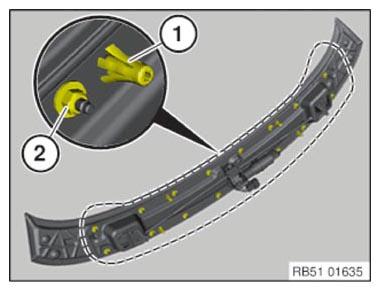

Undo all retainers (1) and nuts (2).

Tightening torque 51 71 6AZ .

Close the tailgate and remove the rear spoiler toward the top.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

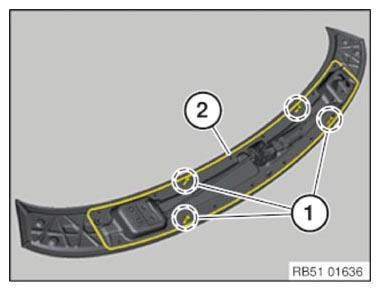

Attach retainers (1) before fitting the rear spoiler.

All the guides, threaded bolts and sealing (2) must remain free from damage.

Check the gap dimensions of the rear spoiler for the body, if necessary adjust REAR SPOILER .

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remount rear spoiler TRIM .
