Removing and installing/replacing luggage compartment trim panel on side wall, right (330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

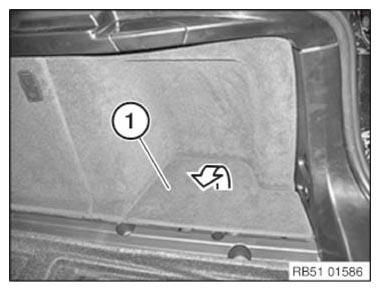

Remove right floor panel trim panel (1) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

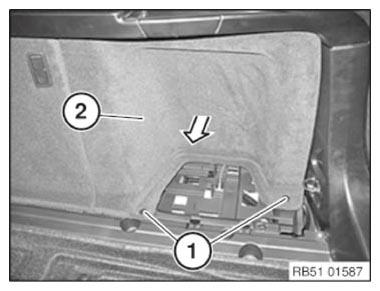

Pry out expanding rivets (1) with special tool 64 1 020.

Remove luggage compartment trim panel (2) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
