Checking/adjusting contact angle of windscreen wiper arms on windscreen (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 6 100
00 9 220

NOTE: The wipe quality is improved by precise adjustment of the CONTACT ANGLE of the wiper arms.
The contact angle can be tested with special tool 61 6 100.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphics show left hand drive vehicle.

Remove wiper blade.

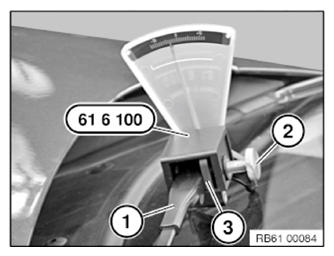

Insert wiper arm (1) into special tool 61 6 100 as shown.

Secure the wiper arm (1) with screw (2) and pressure plate (3) and place onto the windscreen.

Read the scale value and adjust the wiper arm, if necessary.

NOTE: The wiper arm (1) must be placed correctly along the lower and side contact surface of special tool 61 6 100.

Courtesy of BMW OF NORTH AMERICA, INC.

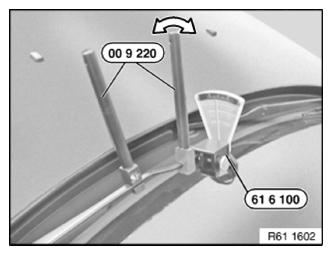

NOTE: Tape off the wiper arm with yellow plastic adhesive tape to prevent damage.

Press special tools 00 9 220 into the corresponding direction until the correct contact angle is reached.
