Removing and installing/replacing rear-window button (330i xDrive Wagon, 328d xDrive Wagon)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove the WIPER PIVOT BEARING FOR THE REAR WIPER .

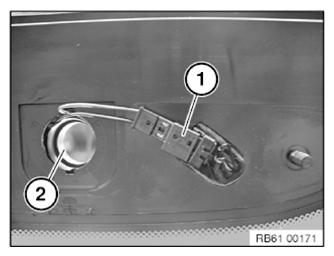

Disconnect plug connection (1).
Feed out rear-window button (2) and place to one side.
Installation note:
Make sure plug connection (1) is correctly locked.
Make sure rear-window button (2) is correctly fitted.
To facilitate installation, coat rear-window button or wiper pivot bearing with lubricant (e.g. low-surface-tension water or LUBRICANT G14 *).
* obtainable via the appropriate BMW parts catalogue
IMPORTANT:
Refer to the manufacturer's safety data sheet if using lubricant G14.
