61 12... Removing and installing battery cover (330i xDrive Wagon, 328d xDrive Wagon)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 64 1 020

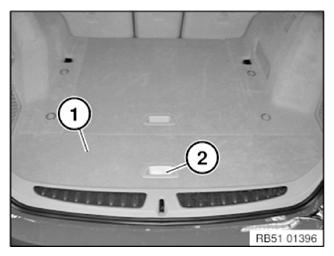

Fold up luggage compartment floor trim panel (1) by the handle (2).

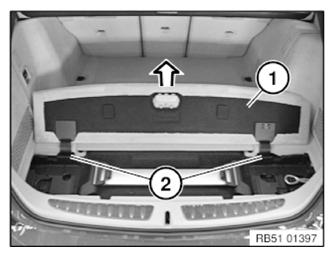

Remove luggage compartment floor trim panel (1) from the guides (2) in direction of arrows.

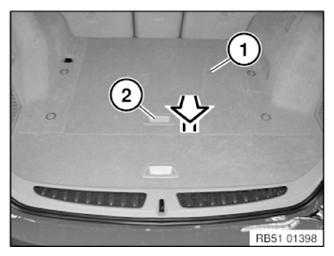

Raise luggage compartment floor trim panel (1) at handle (2) and remove in direction of arrow.

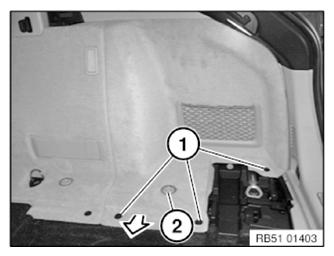

Lift out expanding rivets (1) and cover (2) for adaptive mounting system using special tool 64 1 020 .
Remove luggage compartment trim panel in direction of arrow.
If necessary, take control unit/voltage transformer out of storage compartment and lay to the side.

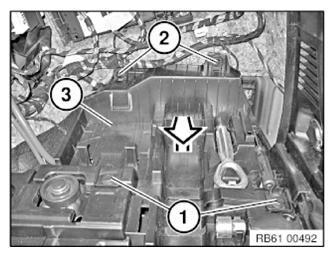

Release expanding rivet (1).
Unscrew nuts (2).
Remove storage compartment (3) in direction of arrow.
