Removing and refitting (replacing) ornamental grille for bumper trim panel (side, M Aerodynamics package) (330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front BUMPER PANEL .

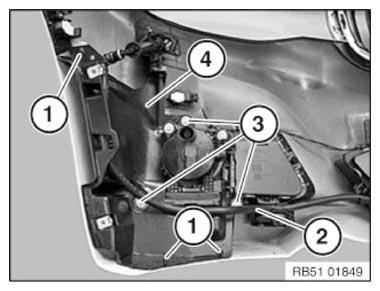

Release expanding rivet (1).
If necessary, unclip hose pipe (2).
Release screws (3).
Feed out holder (4).

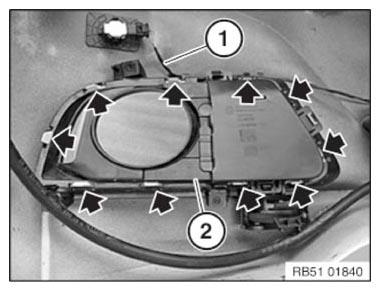

Feed out cable (1) if necessary.
Release ornamental grille (2) from catches and remove.
Installation note:
Latch mechanisms must not be damaged or missing.
