Removing and installing/replacing support for front lower bumper panel (330i xDrive Wagon, 328d xDrive Wagon)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front BUMPER PANEL .
Version with air duct:
Unscrew bolts (1) and expanding rivet (2).
Remove air duct (3).
NOTE:
Schematic diagram shows the right side. Perform repair work on the left side in the same manner.
Version with ACC:
Release screws/blind rivet (1).
Installation note:
Blind rivet nuts* and associated screws* are used as repair solution for defective threads or installed blind rivet.
* Sourcing reference: applicable BMW Parts Catalog.
Adhere to the NOTES on mounting blind rivet nuts.
Release screws (1).
Tightening torque 51 11 10AZ .
Remove support (2) in direction of arrow.
In the case of replacement ACC version:
Drill out blind rivets (1).
Modify holder (2) with ACC sensor.
Adjust ACC SENSOR .
Necessary preliminary work:
- Remove front BUMPER PANEL .

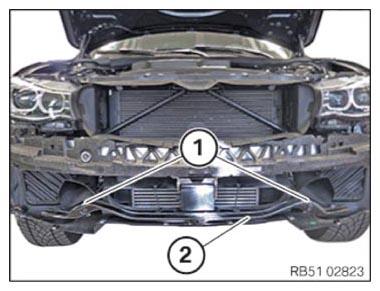

Release screws (1).
Tightening torque 51 11 10AZ .
Remove support (2).
