51 11... Install/replace number plate (using laser) (330i xDrive Wagon, 328d xDrive Wagon)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

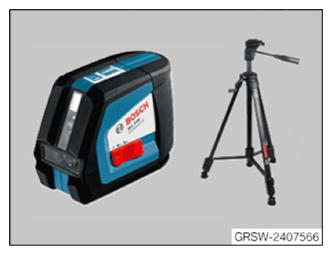

2 407 566

Only use the vehicle-specific number plate baseplate.

The installation of other license plate baseplates is not permissible.

The number plate must be precisely mounted on the number plate baseplate.

If a number plate baseplate is not offered for the corresponding national-market version, the number plate must be screwed directly onto the bumper using a drilling template.

Incorrect assembly leads to a malfunction of the sensors of the driver assist systems.

Drill through number plate at all corners, approx.

15 mm from the edge, with Ø 5 mm drill.

WARNING: Danger of injury!
Laser beam on the special tool.
Do not look into the beam!

Set vehicle and special tool 2 407 566 on a flat surface.

Switch on laser (Position without automatic level).

Activate laser horizontally and vertically.

Courtesy of BMW OF NORTH AMERICA, INC.

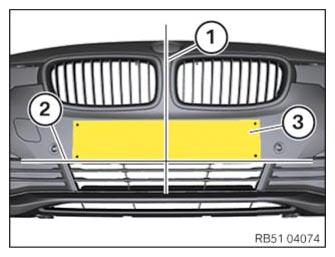

Position and center align special tool 2 407 566 for the vehicle.

Align vertical laser line (1) in the center of the vehicle (Ex: BMW badge).

Align horizontal laser line (2) at two symmetrical corners.

Center number plate at height between edge below the front ornamental grille and the bottom air inlet.

Mark center of number plate (3).

Align number plate (3) at both laser lines and mark attachment points.

Remove special tool 2 407 566.

Screw down number plate (3) at the marked attachment points.

Courtesy of BMW OF NORTH AMERICA, INC.
