Installing the center console

• Insert center console (1) from the rear top.
• Check for correct cable routing under the center console (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

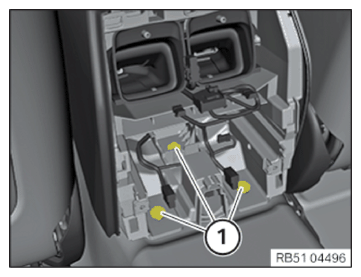

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Center console to holder
  Screw	Tightening torque	4.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

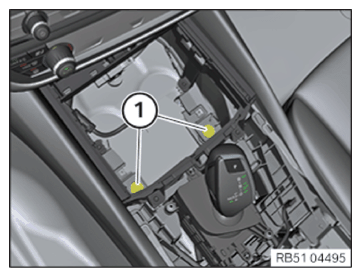

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Center console to holder
  Screw	Tightening torque	4.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

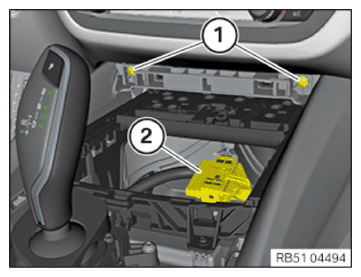

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Center console

  1.8 Nm

• Connect connector (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

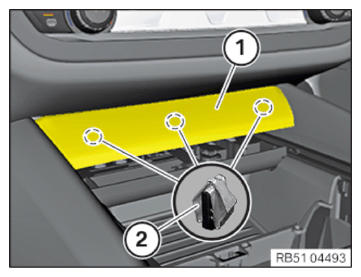

• Clip the trim (1) in from the rear at the clamps (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screw (1) the left footwell.
  TIGHTENING TORQUE SPECIFICATIONS



  Center console

  1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1) the right footwell.
  TIGHTENING TORQUE SPECIFICATIONS



  Center console

  1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FOOTWELL TRIM PANEL ON THE RIGHT .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to INSTALLING THE CUP HOLDER .
• Refer to INSTALLING THE CENTER CONSOLE TRIM .
• Refer to INSTALLING FRONT STORAGE COMPARTMENT TRIM .
• Refer to INSTALLING THE CENTER ARMREST .
• Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to INSTALLING THE REAR VENTILATION GRILLE .
• Refer to INSTALLING THE VENTILATION GRILLE IN THE REAR (AIR CONDITIONING SYSTEM WITH 4-ZONE CONTROL) .
• Refer to INSTALLING THE CONTROL PANEL OF THE REAR PASSENGER COMPARTMENT AIR CONDITIONING (INTEGRATED AUTOMATIC CLIMATE CONTROL WITH 4-ZONE CONTROL) .
• Refer to CONNECT BATTERY GROUND LEAD .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
