Topping up motor oil
WARNING:
Hot fluids.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Make sure the vehicle is operating temperature for engine oil service (engine oil temperature > 70°C).
Make sure the vehicle is operating temperature for engine oil service (engine oil temperature > 70°C).

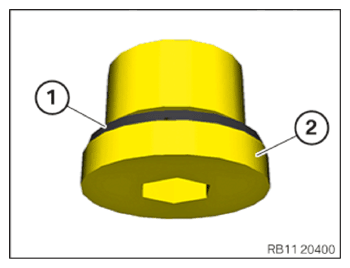

- Position sealing ring (1) on the oil drain plug (2).
Parts: Sealing ring

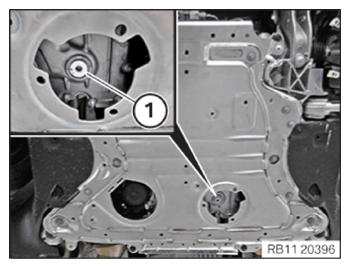

- Position the oil drain plug (1) with sealing ring and let it engage it a few thread turns by hand.
- Tighten oil drain plug (1).
TIGHTENING TORQUES SPECIFICATION
| Oil drain plug | ||
| screw | M18x1.5 | 40 Nm |

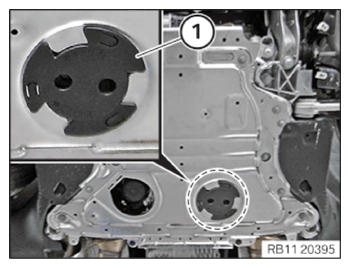

- Position the cover panel of the oil drain plug (1), turn it clockwise and engage.
- Turn the oil filler cap (1) counterclockwise and open it.
- Pour in engine oil.
TECHNICAL DATA SPECIFICATION
| Engine oil S63B44T4 | ||
| Filling capacity, motor oil change with oil filter element | 10L | |
- Turn the oil filler cap (1) clockwise and shut it.
