Removing the holder with the vehicle wiring harness for the sensor system of cylinder bank 2
Removing the holder with the vehicle wiring harness for the sensor system of cylinder bank 2

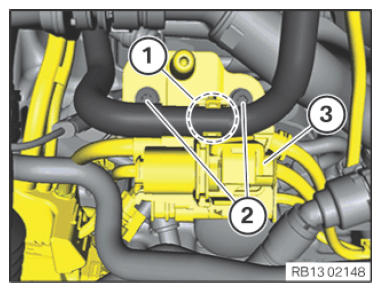

Loosen screws (2).
Disengage the coolant ventilation line in area (1).
Unlock plug connection (3) and disconnect.
Place aside the holder with the vehicle wiring harness for the sensor system.
