Install tension strut on shock tower

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.

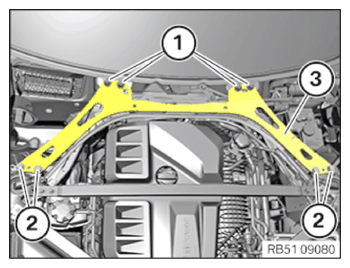

Install tension strut (3).
Replace screws (1).
Parts: Screws

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Tension strut on bulkhead
M10x35 screw Replace screws.	Tightening torque Angle of rotation	56 Nm 90°

Courtesy of BMW OF NORTH AMERICA, INC.

Replace screws (2).
Parts: Screws

Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Tension strut to shock tower
M10x70 screw Replace screws.	Tightening torque Angle of rotation	56 Nm 90°

Follow-up work

Refer to INSTALLING WINDSHIELD PANEL COVER .
Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to INSTALLING THE REAR HOOD SEAL .
