Installing the oil pressure switch

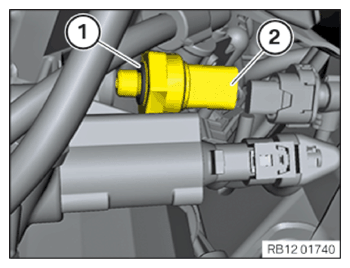

• Replace sealing ring (1).

  Parts:  Sealing ring

• Position the oil pressure switch (2) with the sealing ring (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

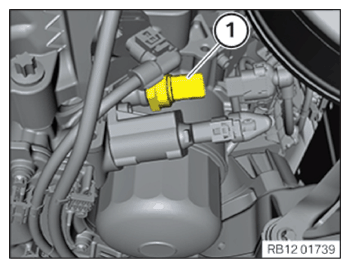

• Tighten oil pressure switch (1).

Courtesy of BMW OF NORTH AMERICA, INC.

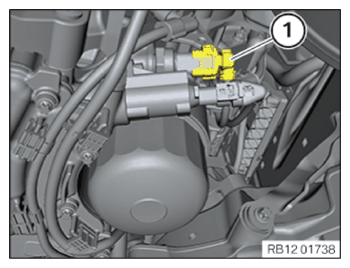

• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

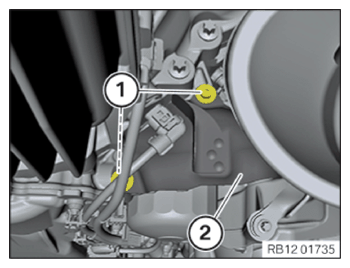

• Position the heat shield (2).

• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CHECKING ENGINE OIL LEVEL .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
