Remove the DME control unit of cylinders 1 to 4

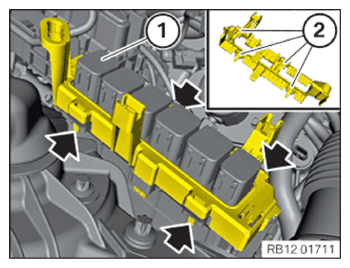

• Disengage the wires and connectors (1) upwards on the adapter plate.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and disconnect plug connections (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock the adapter plate at the detents (2) and remove in an upward direction.
• Remove the DME control unit (1) in an upward direction.

Courtesy of BMW OF NORTH AMERICA, INC.
