Removing exhaust camshaft sensor of cylinder bank 1
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
Preliminary work
- Refer to REMOVING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to RELEASING THE RIGHT FRONT-END STRUT .
- Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .

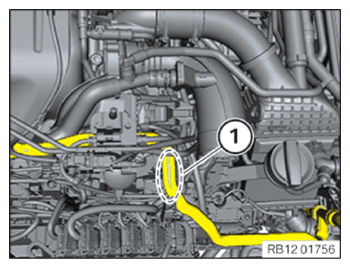

- Slightly press the line (1) to one side.
- Unlock plug connection (1) and disconnect.
- Loosen screw (1).
- Remove exhaust camshaft sensor of cylinder bank 1 (2).
