Install ignition coils of cylinder bank 1
NOTE:
RISK OF DAMAGE
Damage to the ignition coil .
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil .
Damage to the ignition coil .
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil .
- When working on the fuel system, cover the ignition coils with suitable materials and remove where required.
- Do not oil or grease the silicone tube of the spark plug socket. Do not use any protection or maintenance products (e.g. silicone spray, rubber care products, rust remover, etc.).
NOTE:
The description is provided only at one component. The procedure is the same for all other components.
- Version without RDE2:

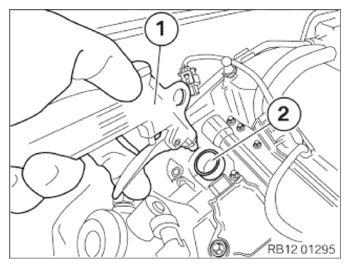

Blow out the spark plug shafts (2) before the installation of the ignition coils with an air gun (1).
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Version with RDE2:

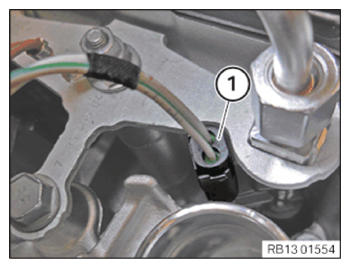

Check all connectors (1) on the injectors again to ensure they are correctly fitted.
Check if all connectors (1) have locked noticeably.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Version with RDE2:

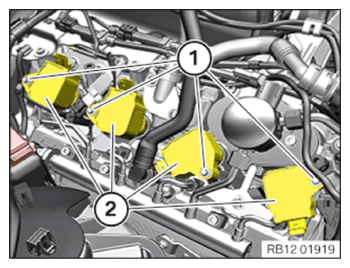

Feed in the ignition coils (2) and install them.
Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Ignition coil | ||
| screw | Tightening torque | 8 Nm |
- Version with RDE2:

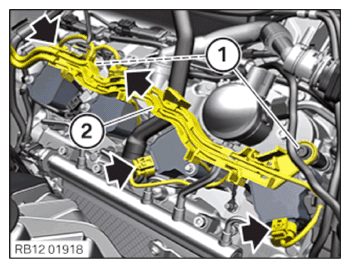

Feed in and install the cable clip (2).
Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Wiring harness to cylinder head cover | ||
| M6x16 screw | Tightening torque | 8 Nm |
- Connect and lock connectors (arrows).
The connectors (arrows) must audibly engage.
- Version with RDE2:

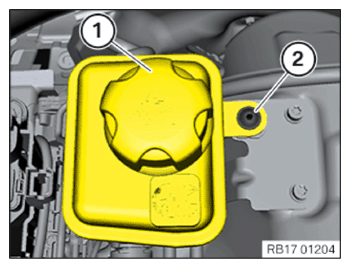

Position the expansion tank (1) for the charge air cooler.
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Low-temperature coolant circuit expansion tank | ||
| Tightening torque | screw | 2.6 Nm |
