Remove the clean air pipe of cylinder bank 1
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
Preliminary work
- Refer to REMOVING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to RELEASING THE RIGHT FRONT-END STRUT .
- Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
- Press together the tank vent line (2) at the retaining device (1) and unlock.
- Disconnect tank vent line (2).
- Fold away the tank vent line (2).

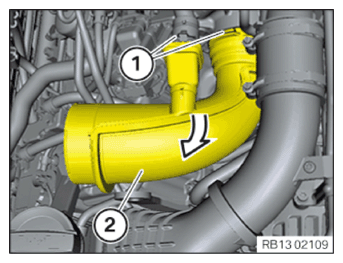

- Unlock the retaining clips (1) in an upward direction, using a suitable screwdriver.
- Remove the clean air pipe of cylinder bank 1 (2) in direction of arrow.
