Remove the clean air pipe of cylinder bank 2
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
Preliminary work
- Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Refer to RELEASING LEFT FRONT-END STRUT .
- Refer to REMOVING LEFT INTAKE SILENCER HOUSING .

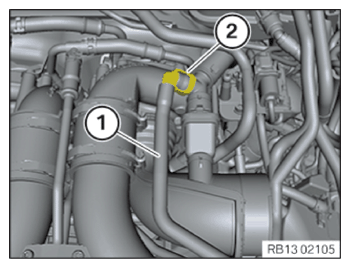

- Press the tank vent line (1) on the catch (2) and unlock.
- Disconnect the tank vent line (1).
- Fold back the tank vent line (1).

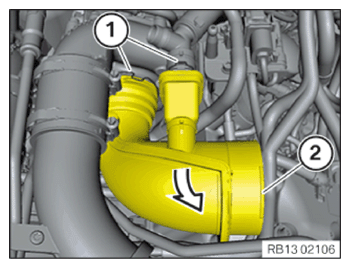

- Unlock the retaining clips (1) in an upward direction, using a suitable screwdriver.
- Remove the clean air pipe of cylinder bank 2 (2) in direction of arrow.
