Install the clean air pipe of cylinder bank 2

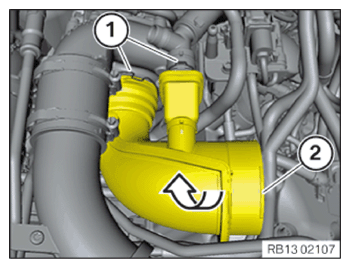

• Position and slide on the clean air pipe of cylinder bank 2 (2) in direction of arrow.

  The retaining clips (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the tank vent line (1) and slide it on.

The tank vent line (1) must lock audibly at the lock (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to TIGHTENING THE LEFT FRONT-END STRUT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
• Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
