Remove right charge air cooler

Unlock the retaining clips (1) with a suitable screwdriver.
Detach the coolant lines (2) and set aside.
Unlock plug connection (3) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
Thread the hose (1) out of the holder on the charge air cooler (4).
Loosen hose clamp (3).
Pull the hose (2) off the stud of the charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.
Thread the hose (1) out of the holder on the charge air cooler (4).
Loosen hose clamp (3).
Pull the hose (2) off the stud of the charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen hose clamp (1).

Loosen hose clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the wiring harness mounting (1).
Loosen screw (2).
Feed out the holder (3) downwards from the groove (4).

Courtesy of BMW OF NORTH AMERICA, INC.
Carefully unlock and disconnect the line (1).
Put the line to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock retaining clip (1) with a suitable screwdriver.
Remove the coolant line (2) and lay it to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
Carefully unlock and disconnect the line (1).
Unlock plug connection (2) and disconnect.

Put the line to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the holder with a suitable screwdriver at the lug (1) and remove it upward from the guide.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the line (1) from the holders (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Unlock plug connection (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

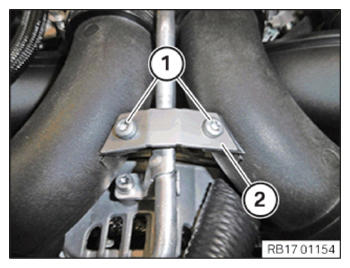

Loosen screws (1).

Removing connecting plate (2) between charge air coolers.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the hose clamps (1) on the charge air cooler (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed the charge air cooler (1) out toward the top and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
